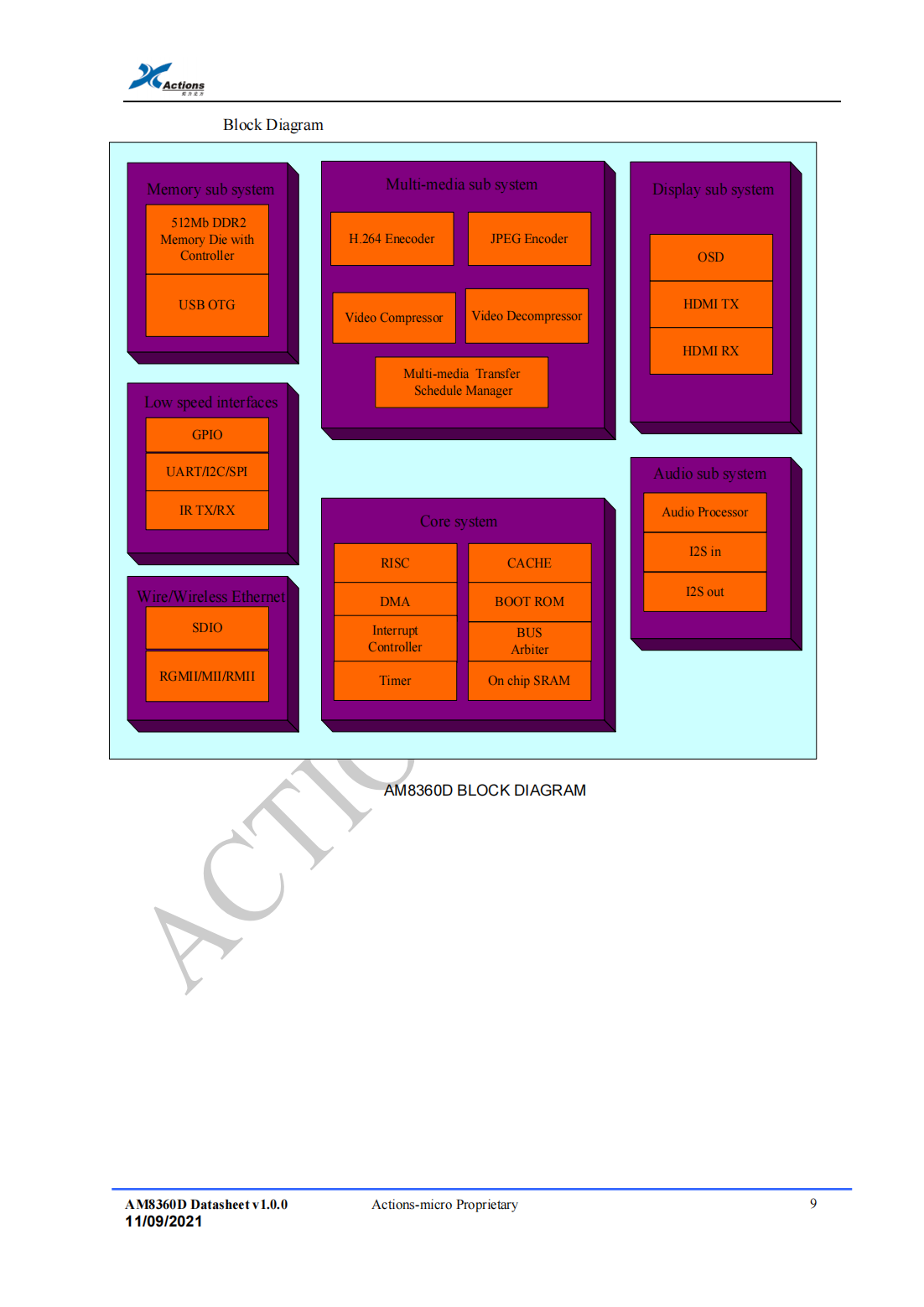

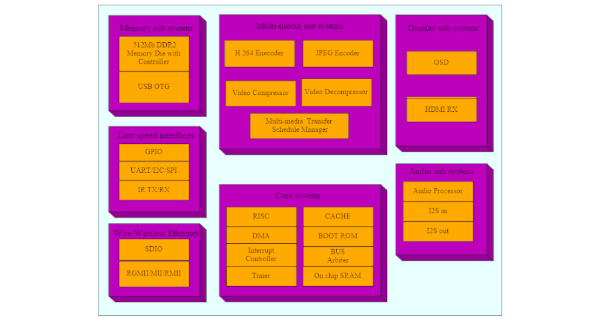

The AM8360D processor from Actions-Micro is a highly integrated mix signal SoC target at multi-media applications.The AM8360D emmedded CPU is a high performance,low power 32bit RISC core with DSP instruction extension,which can run as fast as 700MHz.
The AM8360D processor features a hardwired multi-format video encoder,which supports a large variety of popular video formats including:H.264 at FHD/4K resolution.
The AM8360D integrated lossless or near-lossless image/video compress and de-compress module which can transfer 1080P video with format RGB888 through 1Gbit/s Ethernet.
The AM8360D multi-media processor provided display solutions with the help of on chip HDMItransmitter and receiver interface.AM8360D is also integrated with 1 USB OTG controllers,UART,I2C,SPI,etc.
There is a 512Mb DDR2 memory die integrated in AM8360D,so no need to hang a DDR2 memory on PCB
